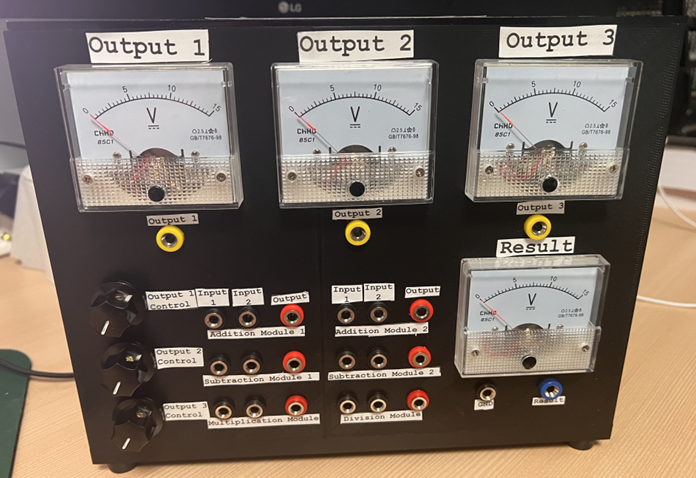

Project Name: Analog Computer Main Function: Operates Arithmetic operations using only analog circuits. Main Mechanism: This device is designed to operate addition, subtraction, multiplication and division. The operation can withstand up to 12 Volts. This project was done to understand the basics of Operational amplifiers and how computation was done before the digital age emerged.

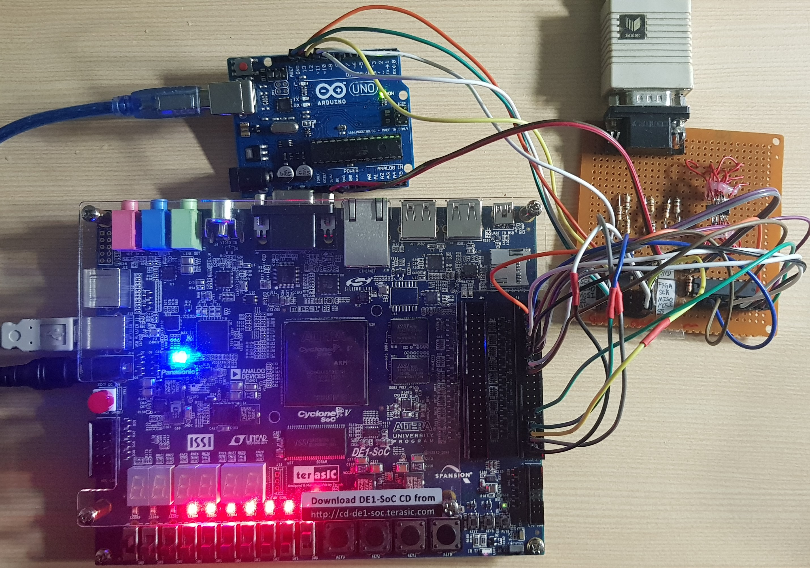

Project Name: Making a Simple Graphic Card & a Simple Sound Card Main Mechanism: Outputs signals through a monitor and a speaker from an Arduino Uno or an SD card. Main Feature: Graphic Card Part (electron65 part) A digital signal from the Arduino Uno is sent throught the DE1-SoC FPGA Board. In the process of being sent, it is sent by SPI protocol. From the inside of the FPGA board, the signal i..

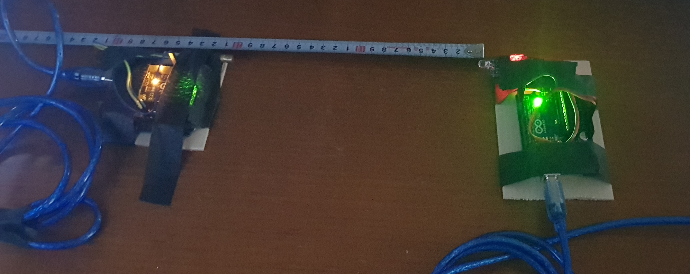

Project Name: Laser Communication Main function: Communicates using laser pulses. Main Mechanism: A user will type a character or a string. The data is converted into binary numbers. Each binary number is matched to "On" or "Off" (ex. 1 - ON, 0 - OFF). The laser module then blinks at each data. On the other side of the laser would be a Photolight sensor. The senser takes the light being sent. Th..

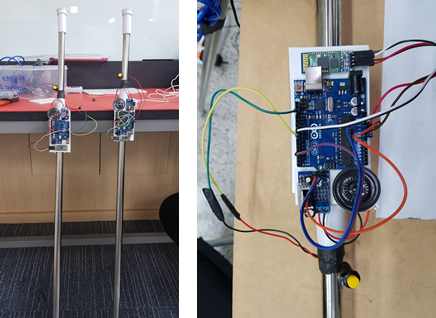

Project Name: Handicapped & IoT Technology Main Function: Helps people who have trouble seeing or are blinded, find there way anywhere and anytime by directing them through sound signals. Main Mechanism: Bluetooth modules that are installed in everyday items or facilities such as phones, hospitals or even traffiic lights can communicate with the challenged, especially through the cane. The user ..
